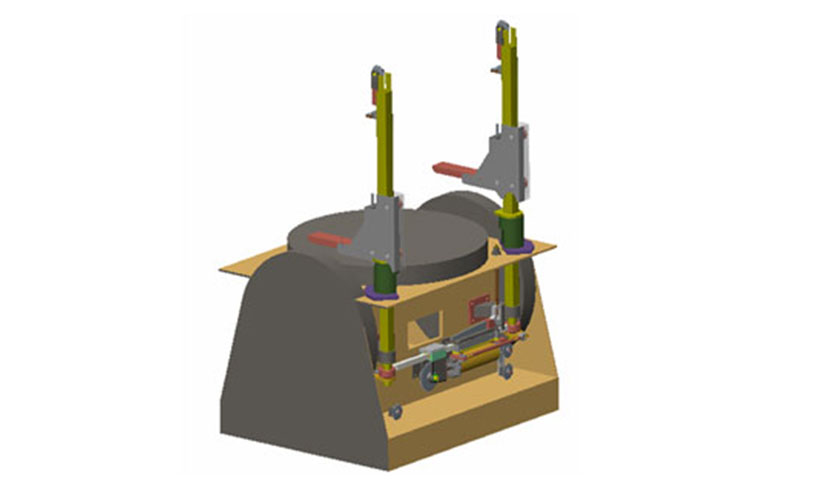

75” Unloader



0 Comment(s)

Reverse engineered and some mechanisms are analysed and developed for efficiency
Design approval obtained from customer
Detailed manufacturing drawing prepared and released
Manufacturing team manufactured
Assembled following highest level of Quality

Specifications:

Size: 75” press
DOF:2

Reach:

Up / Down: 700mm
Arm Rotation: 60°
Load Capacity: 100kg
Structure: Fixed with Press Base
